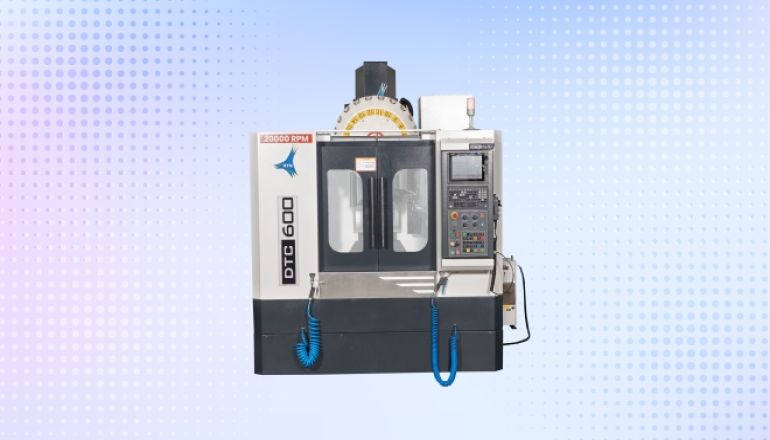

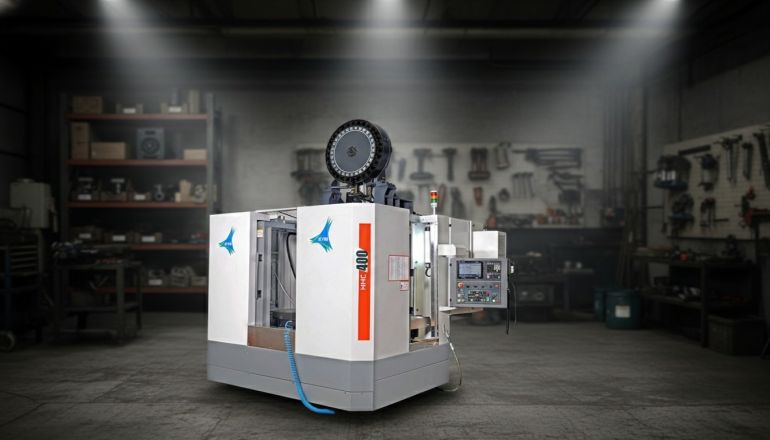

DTC

Technical Specification

Description	DTC 5040	DTC 6045
+ CAPACITY
Table longitudinal Travel ( X - Axis stroke) (mm)	500	600
Table Cross travel ( Y-Axis Stroke) (mm)	400	450
Head Stock travel ( Z- Axis Stroke) (mm)	330	330
Spindle Nose face To table top (mm)	150-480	150-480
Distance from Floor to Table (mm)	807	854
Spindle center-Cloumm Front Distance (mm)	464	464
+ SPINDLE
Taper (Type)	BT-30	BT-30
Speed Standard (RPM)	20000	20000
Spindle Motor Power 15 min./cont. (Siemens) (kw)	6/4.1	6/4.1
Spindle Torque 15 min./Cont. (Siemens) (N-m)	21./13.1	21./13.1
Spindle Motor Power 15 min./cont. (Fanuc) (kw)	5.5/3.7	5.5/3.7
Spindle Torque 15 min./Cont. (Fanuc) (N-n)	17.5/11.8	17.5/11.8
Spindle Motor Power 15 min./cont. (Mitsubishi) (kw)	5.5/3.7	5.5/3.7
Spindle Torque 15 min./Cont. (Mitsubishi) (N-m)	21/14.1	21/14.1
Spindle Bearing Size (Type)	7008 x 4	7008 x 4
+ FEED RATE
Maximum Cutting Feed Rate(x/y/z) (mm/min)	10000	10000
Rapid Feed Rate (mm/min)	36000/48000	36000/48000
+ TABLE
Table Size (mm)	650 x 400	700 x 420
T- Slot ( no/size/pitch) (mm)	3 x 14 x 125	3 x 14 x 125
Maximum load on table (kg)	250	250
+ ATC
Tool Change System (Type)	Tapping type	Tapping type
Tool Storage Capacity - Std (Nos.)	21	21
Pull Stud (Type)	mas403 p 40t-1(45)	mas403 p 40t-1(45)
Max tool Dia With All pockets full (mm)	80	80
Max tool length (mm)	250	250
Max tool weight (kg)	3	3
Tool to Tool Time (sec)	0.4	0.4
+ OTHERS
Positioning Repeatability X/Y/Z (mm)	±0.003/300	±0.003/300
Positioning Accuracy X/Y/Z (mm)	±0.004/300	±0.004/300
Weight (Approx) (kg.)	2200	2500
Machine Total Overall size (mm)	1540 x 1705 x 1932	1650 x 1795 x 1978
Lubrication tank Capacity (Ltr.)	3	3

Chip Conveyor
Through Coolant Spindle
Direct Coupled Spindle
High Pressure Coolant Pump
Oil Skimmer
Spindle Oil Chiller
Probing System
4th Axis Complete (Rotary Table with Motor Drive + Hydra Pneumatic Cylinders + Cables + Interfacing)
4+1 = 5 Axis Complete (Rotary Tilting Table with Motor Drive + Hydra Pneumatic Cylinders + Cables + Interfacing)
Manual Tail Stock - Manual Chuck - Power Chuck
Clamping Kit
100 to 200 mm Height Riser
Voltage Stabilizer
Motorized Spindle
Linear Scale

Bed Construction Extra Wide Design
Ball screw with C3 Grade, Long Nut and Deep Groove with Zero Backlash
Inverted Y Type Column Design
Higher Bessel Point (GRATER THEN 0.7)
High Precision Grade Roller Type LM Guideways with Medium Pre loaded Extra Long Blocks
Digital Servo Spindle Motor
Taiwan Make High Speed Rigid Spindle with P4 Class Angular Contact Ball Bearings
Smart Tool Management System
Tool ATC with Lowest tool to tool Time
Advance Tool Call System (ATS)
Dry Air Cutting Nozzle with High Pressure and Flow
All Telescopic Cover in Stainless Steel Grade
Machine Guard with International Quality Powder Coated
Electric Panel with Air conditioner
High Pressure Coolant Unit
Auto Lubrication Unit and Coolant Unit
Ring Coolant, Coolant Tank
Flush Coolant
Pull Stud, T - Nut
Allen Key Set, Spanner Set
