RIG Premium Series

  • Home
  • Category > Series

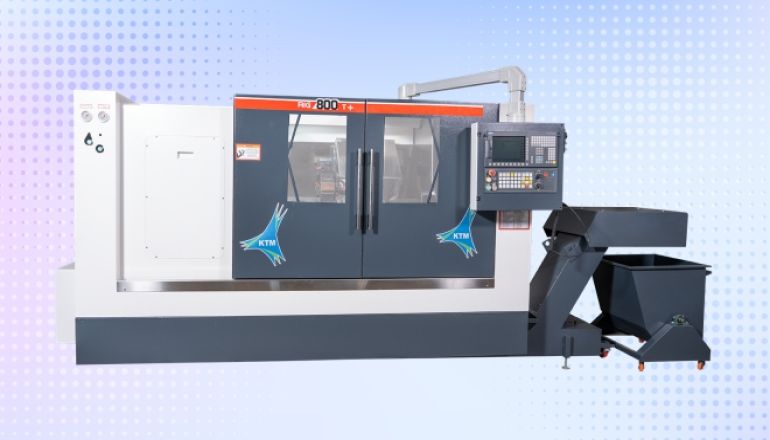

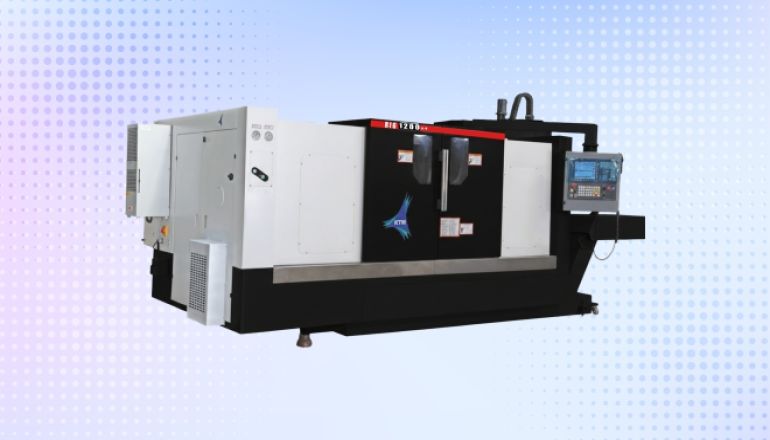

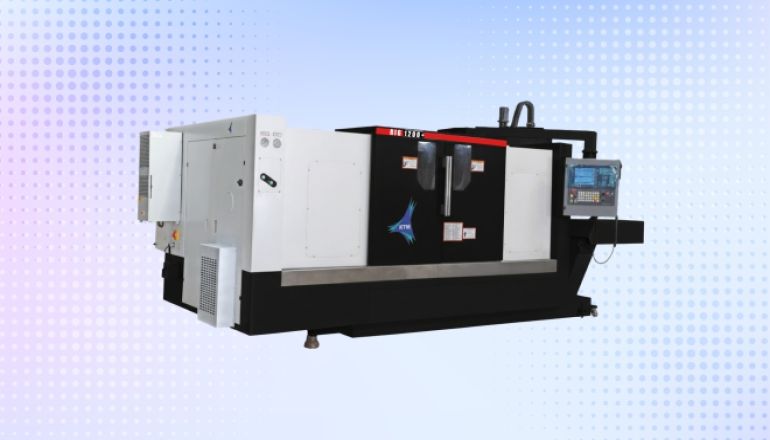

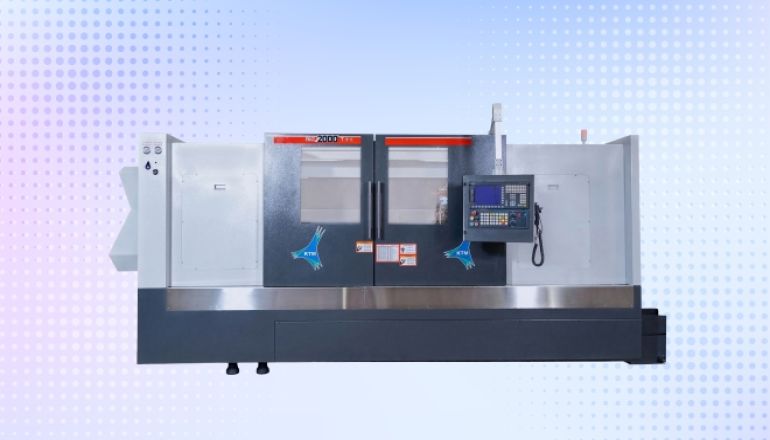

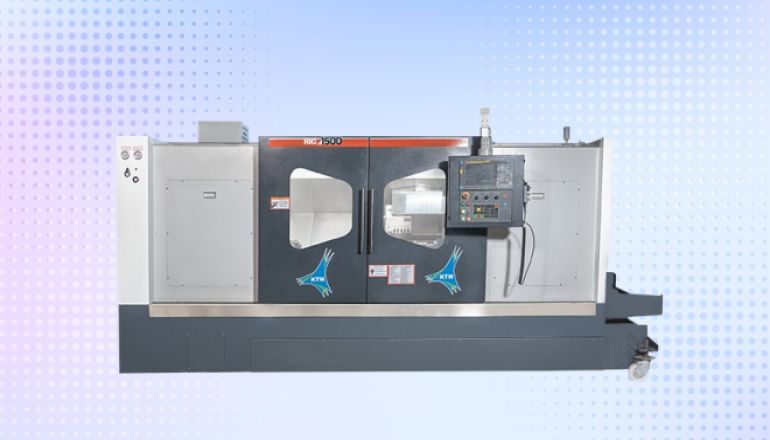

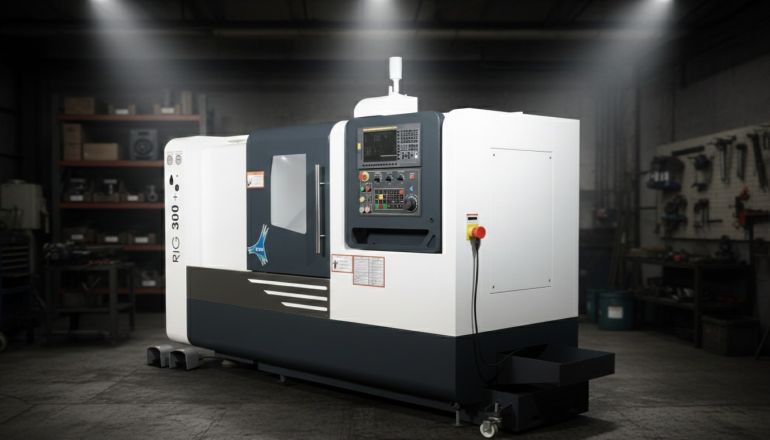

RIG Premium Series
RIG Premium Series
RIG Premium Series

Technical Specification

Description RIG 600 RIG 600+ RIG 800 RIG 800+ RIG 800++ RIG 1200 RIG 1200+ RIG 1200++ RIG 1500 RIG 1500+ RIG 2000 RIG 2000+
+ CAPACITY
Swing Over The Bed (mm) 520 520 650 650 650 800 800 800 800 800 800 800
Swing Over Carriage (mm) 250 250 450 450 450 500 500 500 500 500 500 500
Max.Turning Dia. (mm) 360 360 400 400 400 400 400 400 450 450 500 500
Max.Turning Length (mm) 600 580 800 780 760 1200 1160 1160 1500 1480 2000 1980
+ SPINDLE
Spindle Nose (Type) A2-6 A2-8 A2-6 A2-8 A2-11 A2-6 A2-11 A2-11 A2-8 A2-11 A2-8 A2-11
Spindle Bore (mm) 63 90 63 90 110 63 110 110 110 110 90 110
Max Bar Capacity through Spindle (mm) 51 75 51 75 90 51 90 90 90 90 75 90
Chuck Size std/Optional (mm) 200/250 250/300 200/250 250/300 300/380 200/250 300/380 300/380 250/300 300/380 250/300 300/380
Spindle Speed Range Min-Max (RPM) 50-3500 50-2500 50-3500 50-2500 50-1800 50-3500 50-1800 50-1800 50-2500 50-1800 50-2500 50-1800
Siemens 828D Motor(15 min/cont.) (kw) 11/9 16/12 16/12 16/12 16/12 16/12 18.5/15 18.5/15 16/12 18.5/15 16/12 18.5/15
Siemens 828D spindle Torque(15 min/cont.) (N-m) 192/110 395/264 344/230 395/264 395/264 395/264 246/165 246/165 395/264 246/165 395/264 246/165
Fanuc OI-TF / Mitsubishi LA Motor(15 min/cont.) (kw) 11/7.5 15/11 15/11 15/11 15/11 15/11 18.5/15 18.5/15 15/11 18.5/15 15/11 18.5/15
Fanuc OI-TF / Mitsubishi LA spindle Torque(15 min/cont.) (N-m) 140/70 218/119 190/104 218/119 218/119 218/119 271/218 271/218 218/119 271/218 218/119 271/218
+ FEED
X-Axis Stroke (mm) 190 190 210 210 210 210 210 210 230 230 260 260
Z-Axis Stroke (mm) 600 580 800 780 760 1200 1160 1160 1500 1480 2000 1980
Maximum Cutting Feed Rate(X/Z) (mm/min) 10000 10000 10000 10000 10000 1000 10000 10000 10000 10000 10000 10000
Rapid Feed rate(X/Z) (mm/min) 24000 24000 24000 24000 24000 20000 20000 20000 20000 20000 20000 20000
+ QUILL
Quill Diameter (mm) 85 85 100 100 100 100 100 100 100 100 100 100
Quill Stroke (mm) 120 120 120 120 120 120 120 120 120 120 120 120
Taper In Quill (Type) MT-4 MT-5 MT-5 MT-5 MT-5 MT-5 MT-5 MT-5 MT-5 MT-5 MT-5 MT-5
Maximum Quill Thrust (kgf) 1500 1800 1500 1800 1800 1500 1500 1500 1800 1800 1800 1800
Tail Stock Body travel (mm) 510 510 730 730 730 1000 1000 1000 1300 1300 1700 1700
+ TURRET
Turrer Size (Size) 80 80 100 100 125 100 125 125 125 125 125 125
Turret type (Type) Hyd. Hyd. Hyd. Hyd. Hyd. Hyd. Hyd. Hyd. Hyd. Hyd. Hyd. Hyd.
No. of Tool Station (Nos.) 8 8 8 8 8 8 8 8 8 8 8 8
Max. Boring Bar Diameter (mm) 40 40 40 40 50 40 50 50 50 50 50 50
Tool Shank (mm X mm) 25x25 25 x 25 25 x 25 25 x 25 32 x 32 25 x 25 32 x 32 32 x 32 32 x 32 32 x 32 32 x 32 32 x 32
+ ACCURACY
Positoning Repeatability X/Z (mm) ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005
Positoning Accuracy X/Z (mm) 0.008 0.008 0.008 0.008 0.008 0.008 0.008 0.008 0.008 0.008 0.008 0.008
+ TANK CAPACITY
Hydraulic Tank (Ltr.) 40 40 40 40 40 40 40 40 40 40 40 40
Lubrication Tank (Ltr.) 3 3 3 3 3 3 3 3 3 3 3 3
Coolant Tank (Approx) (Ltr.) 200 200 250 250 250 280 280 280 320 320 350 350
+ ABOUT
Machine Over All Diamensions (L+W+H) (mm X mm X mm) 2800x1700x1700 2800x1700x1700 3100 x 2020 x 1900 3100 x 2020 x 1900 3100 x 2020 x 1900 3500 x 2000 x 1950 3100 x 2020 x 1900 3500 x 2000 x 1950 4050 x 2050 x 2000 4050x2050x2000 5300x2300x2250 5300x2300x2250
Machine Weight(Approx) (Kg) 4200 4400 4600 5000 5450 5500 6100 6100 6000 6500 10000 11000
Optional Feature
  • Chip Conveyor
  • Voltage Stabilizer
  • Revolving Center
  • Through Coolant Boring Block
  • High Pressure Coolant Pump
  • Auto Door
  • Bar Feeder
  • Bar Puller
  • Part Catcher
  • Oil Skimmer
Standard Feature
  • Dual Torque Tube Design with 45° True Slant Bed Construction
  • Ball screw with C3 Grade, Long Nut and Deep Groove with Zero Backlash
  • High Precision Grade 45 Size Roller Type LM Guideways with Medium preload Flange Type Blocks
  • Digital Servo Spindle Motor
  • Cartridge Type High Speed Rigid Spindle with P4Class Angular Contact Bearings (3+2)
  • Hydraulic Power Chuck Jaw with Hard Jaw and Soft Jaw
  • Hydraulic Bi-Direction Turret
  • All Telescopic Cover in Stainless Steel Grade
  • Machine Guard with International Quality Powder Coated
  • Electric Panel with Air conditioner
  • Coolant Unit, Auto Lubrication Unit
  • Boring Bar Tool Holder, Axial Tool Holder
  • Sleeve Set, Allen Key Set
  • Spanner Set, Grease Gun
  • Leveling Pads
